Industrial Biomass Boiler





Overview

Designed, manufactured and packed from our very own backyard, Boilermech offers a proven, well-designed and efficient bi-drum water tube boiler, paired with the following combustion system:

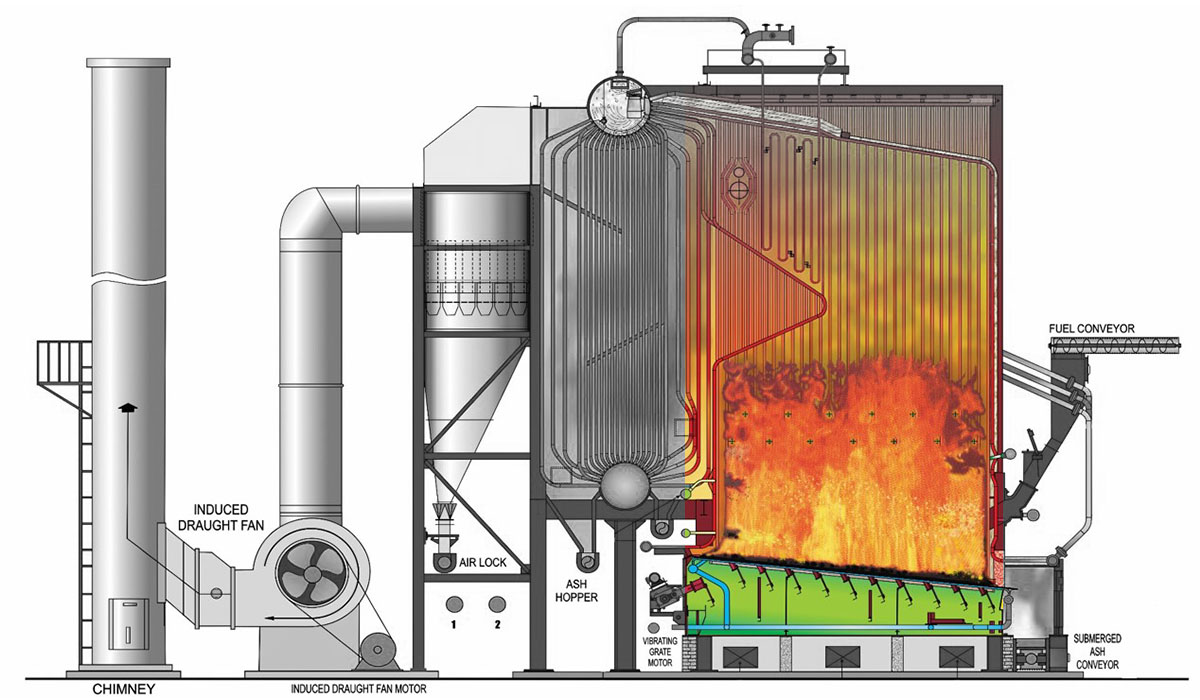

Vibrating Grates
automation and efficient combustion

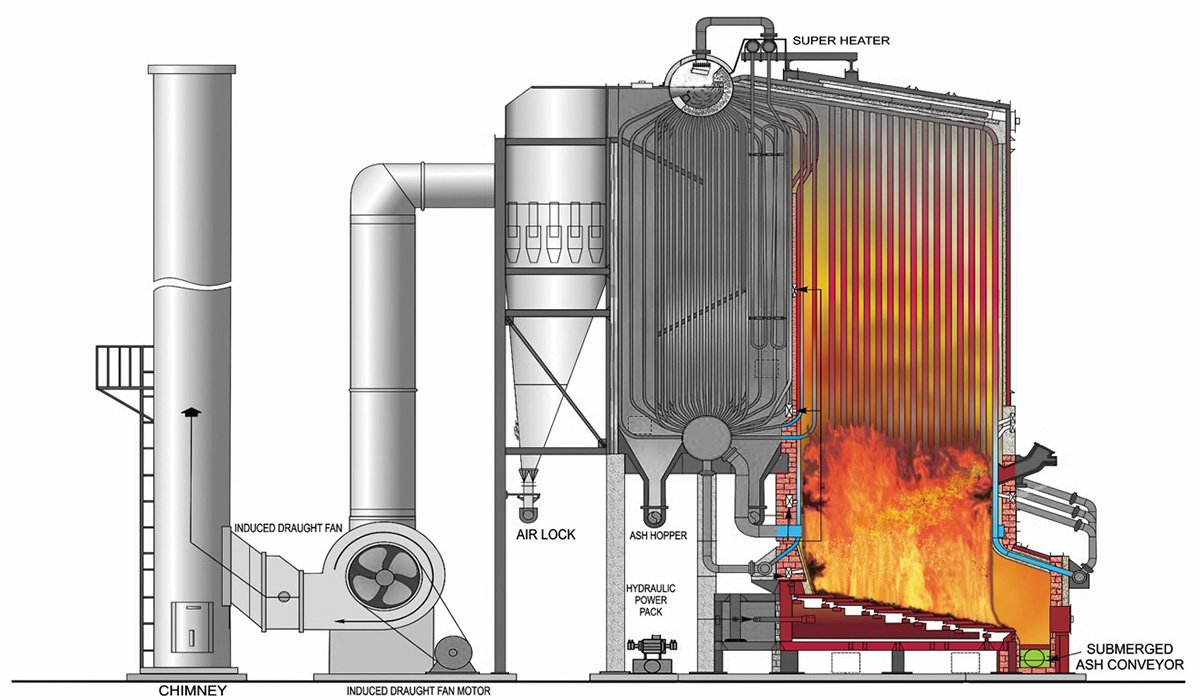

Reciprocating Grates
suitable for very high moisture fuel

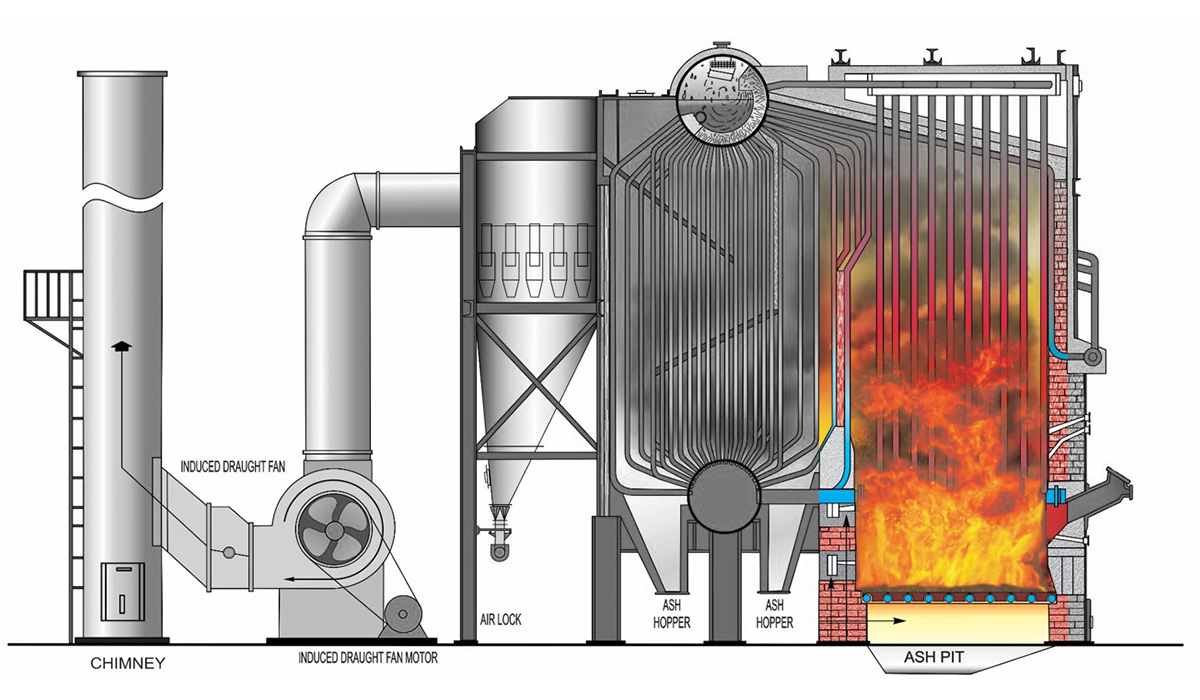

Fixed Grates
economical, rugged and low operating cost



Our boilers are designed not only to be suitable for palm waste as its combustion fuel but for the following biomass waste as well:

Empty Fruit Bunch
Fibre
Kernal Shell
Bagasse
Rice husk
Wood Chip
Saw Dust

Based on the fuel used, the feeding system plays a crucial as each fuel can differ from moisture levels, size or application. Because of this, we offer a customisable fuel feeding solution in three ways:

  • Fuel feeding mechanism – air spreader with gravity drop fuel gate (Pendulum type) or variable speed screws (Inverter type)
  • Fuel transport mechanism – screw, scrapper, belt type
  • Fuel storage and retrieval mechanism – moving floor, silo and hopper screw

Key highlights of our bi-drum boiler:

  • Capacity range 6 – 130 TPH
  • Tube & tile / Membrane wall furnace
  • Saturated / Superheated (up to 435˚C) steam
  • Up to 55 barg pressure


* Terms & conditions apply
